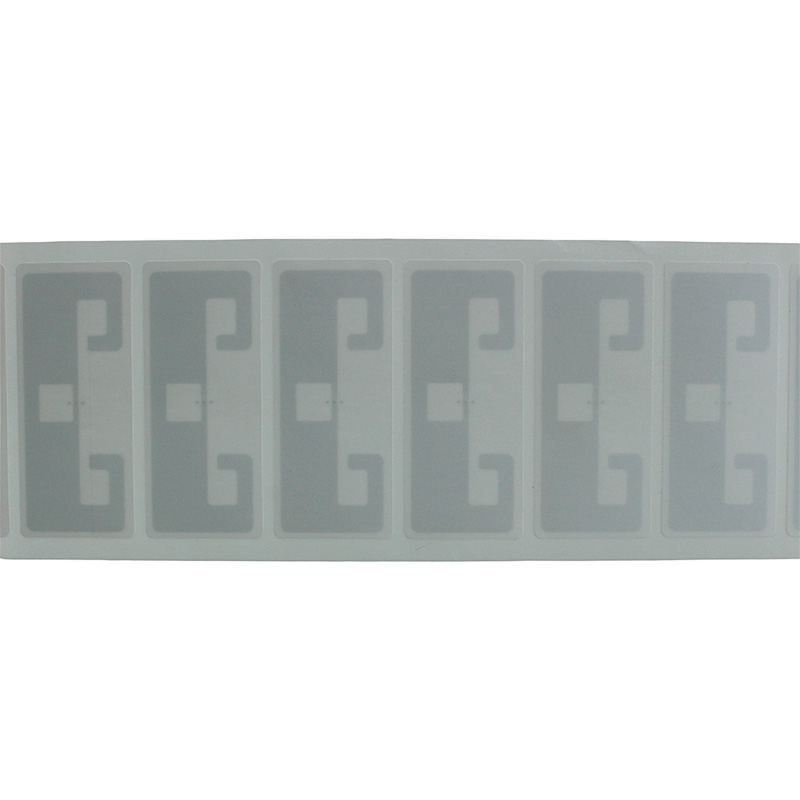

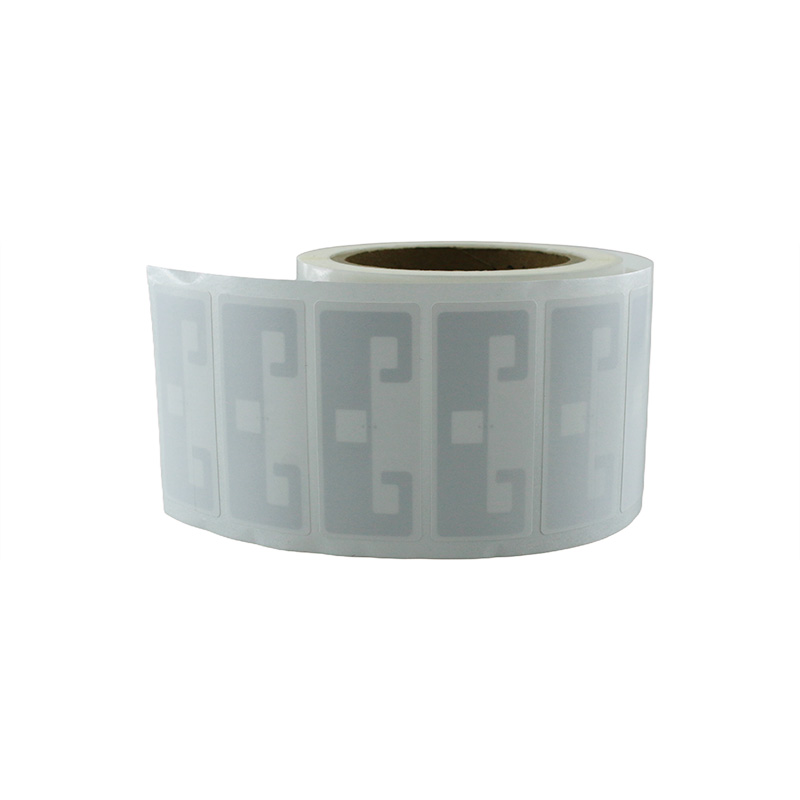

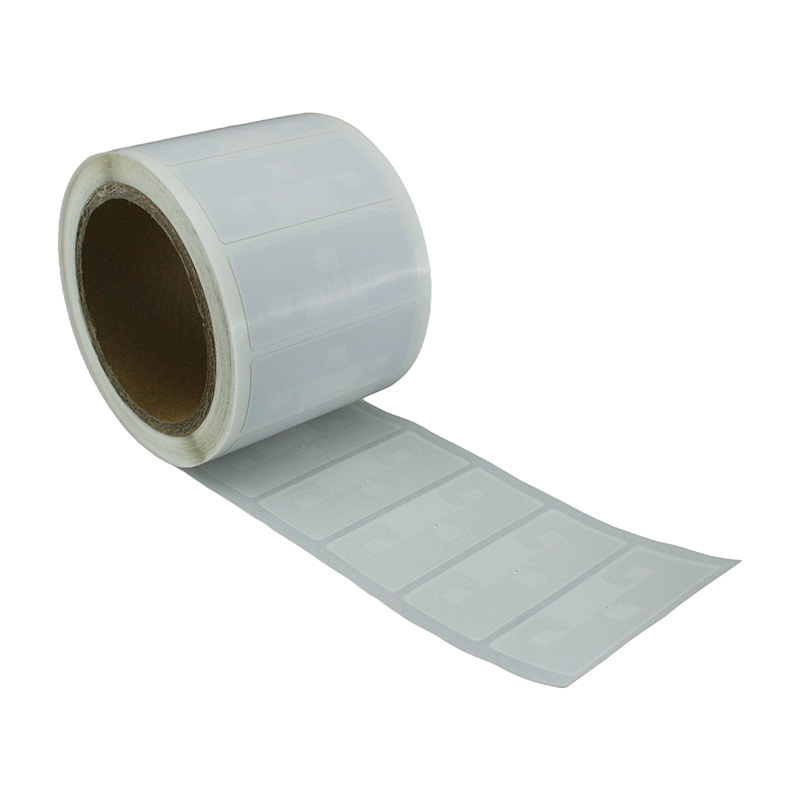

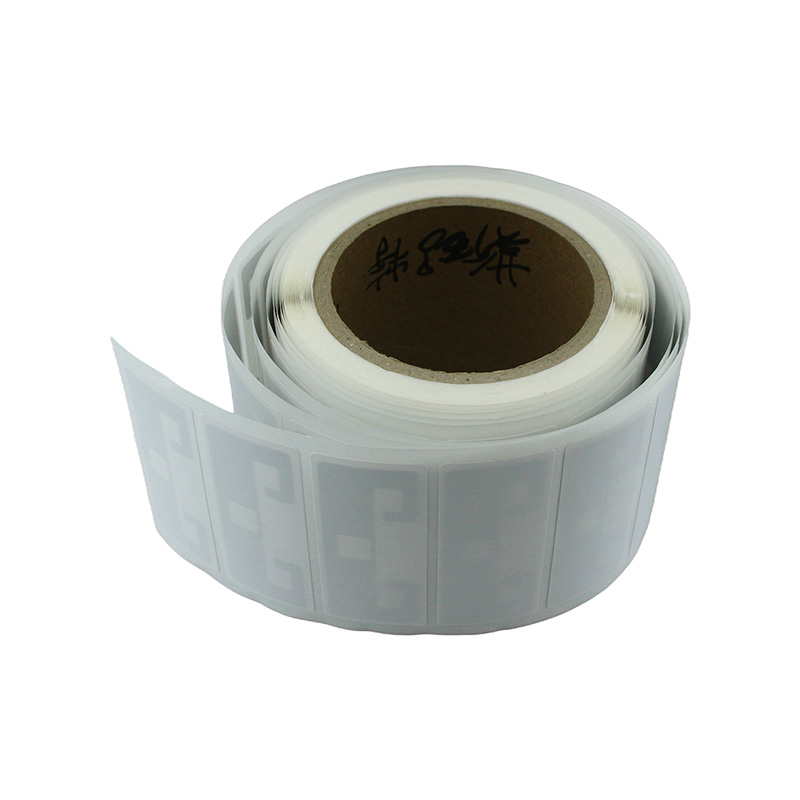

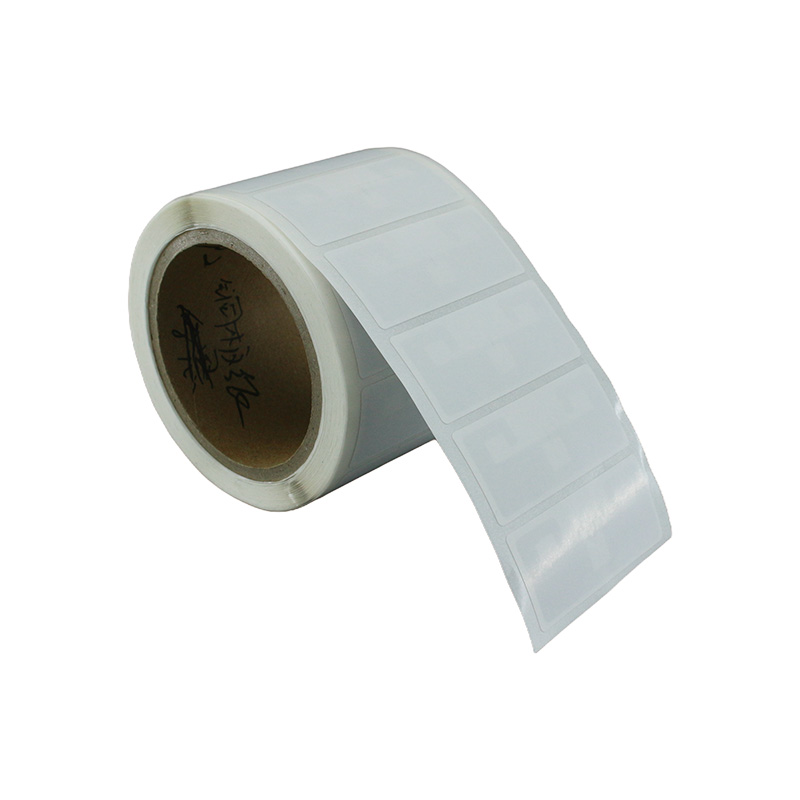

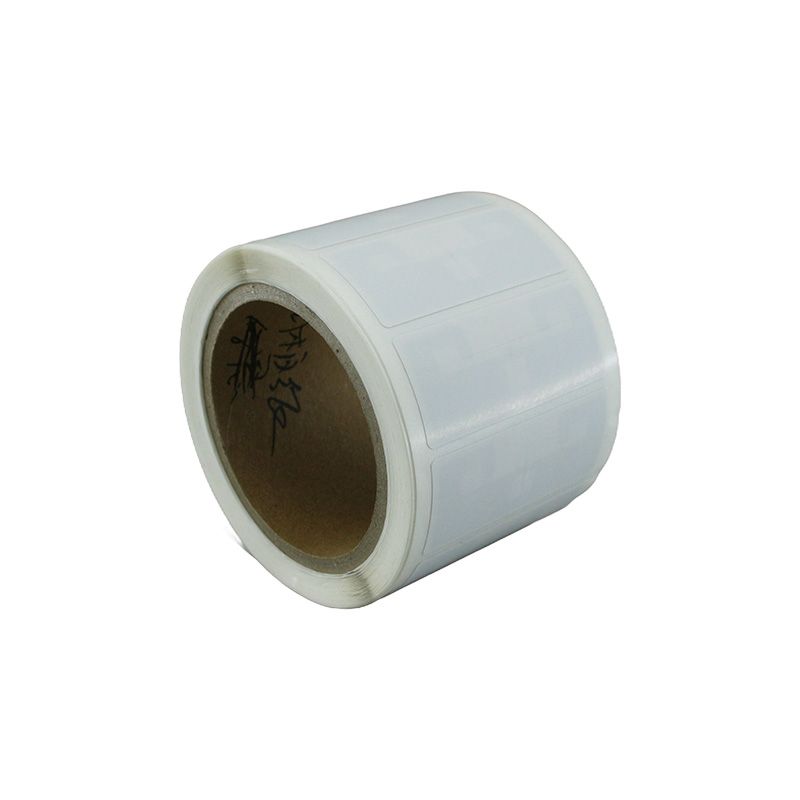

UHF RFID sticker with Impinj Monza M730 chip, 70×30mm, available on PVC, PET or paper. ISO 18000-6C / EPC Gen 2, 860–960 MHz, supplied on rolls of 1,000. Serial numbers and custom graphics available.
$0.12/pc
MOQ: 10000 pcs · Volume discounts available on request
$1200.00
$0.12 / each
In Stock (1000000 available)
Minimum order: 10000 pcs
Secure checkout via PayPal
| IC type | M730 |
|---|---|
| Size(mm) | 70x30 |
| Operational Frequency | 860MHZ-960MHZ |
| Protocol | ISO/IEC 18000-6C，EPC Class1 Gen2 |
| Chip | M730 |
| Memory | EPC 128Byte |
| Data Retention | 10 Years |
| Write Cycle Endurance | 100,000 cycles |
| Label size | 70x30mm |
| Antenna size | 66x26mm |
| Weight | 2.0g |
| Material | PVC, PET, Paper |
| Packaging | Reel core inner dimension: 76.2mm/ 3” ,1000pcs/roll |
| Attachment | Adhesive |
| Operating Temperature | −20 °C to +50 °C |
| Storage Temperature | −20 °C to +50 °C |
Ultra High Frequency (UHF) RFID stickers are a popular choice due to their long read ranges and high-speed data transfer capabilities. These labels are equipped with an optimal, efficient, and fast RFID IC designed to meet the needs of challenging RFID tagging applications. It is ideal for operations that use small package labels, apparel hang tags, asset management, tube management, etc.
Operating at 860–960 MHz and compliant with ISO/IEC 18000-6C (EPC Class 1 Gen 2), the sticker features 128-bit EPC memory with 10-year data retention and 100,000 write-cycle endurance.
