UHF RFID dry and wet inlay powered by the Impinj Monza R6 chip. 3 m+ read range on non-metal surfaces, ETSI & FCC. Custom sizes on request.
$0.15 – $1/pc
MOQ: 100 pcs · Volume discounts available on request
Select all specifications before choosing quantity or starting checkout. No option will change another selection.
$0.15 – $1.00
$1.00 / each
Minimum order: 100 pcs
Secure checkout via PayPal
| Size(mm) | 22x12.5, 27x10, 33x10, 35x18, 40x15, 42x11, 50x30, 70x15, 95x11, 95x3 |
|---|---|
| Thickness(mm) | 0.20 |
| IC type | Monza R6 |
| Parameter | Dry, Wet |
| TAG MOUNT | Standard |
RFIDHY’s Monza R6 UHF inlay is designed for tagging wooden furniture, plastic items and other non-metal objects. This thin, soft and flexible inlay is widely used for asset tracking and management. Antennas can be customized by project, and sizes can be tailored to meet different requirements.
WE SUPPORT RFID TAG OEM SERVICE
Monza R6 inlays print and encode easily on standard RFID printers, and deliver a read range of more than 3 meters on non-metal surfaces. Each inlay features traceable, secure TID serialization and is available in both ETSI (Europe) and FCC (Americas and Asia) frequency bands.

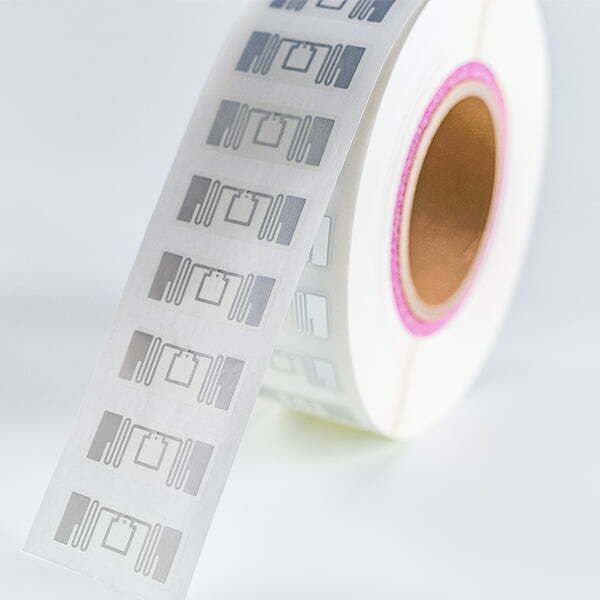

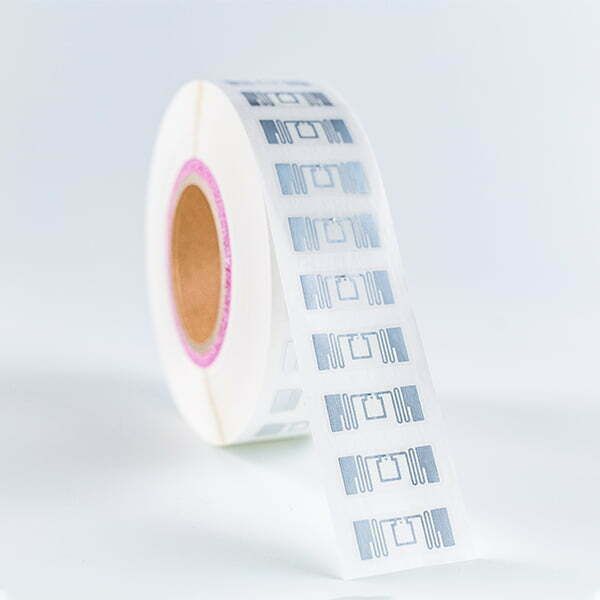

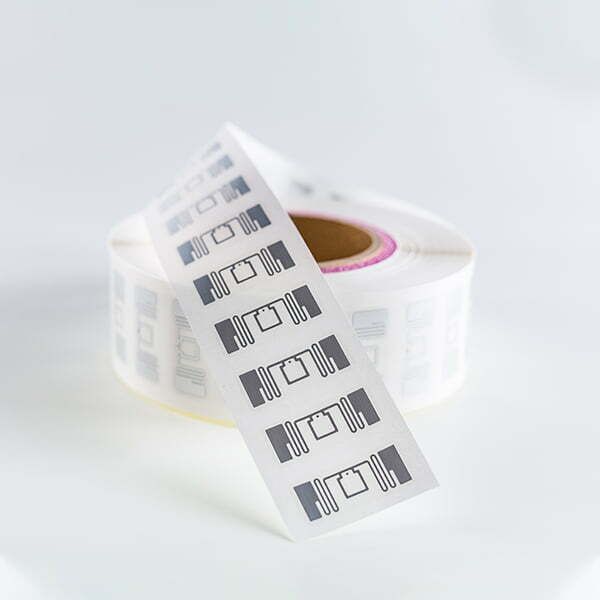

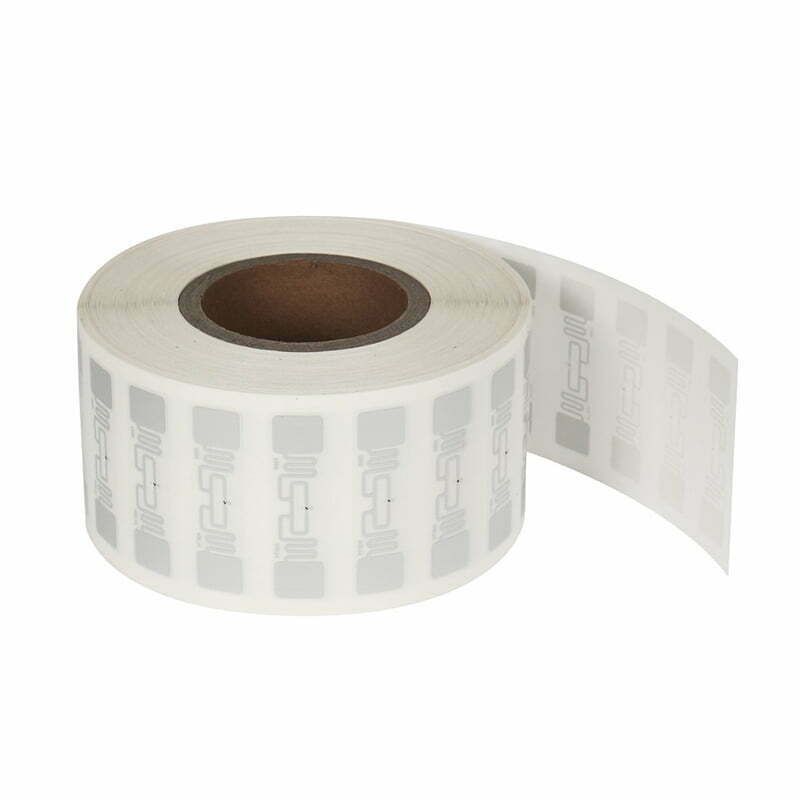

The inlay's thin construction protects RFID printer print heads while ensuring smooth converting and application. Delivered in wet format as single-row reels of 5,000 units, with reliable adhesion on demanding surfaces. A clean gap between inlays makes them applicator-friendly and minimizes waste at the point of use.
The Impinj Monza R6 is one of the most widely deployed RFID chips in the industry, known for reliable, consistent read/write performance. The chip family supports diverse application s- including tag orientation insensitivity and flexible memory options - making it a strong fit for manufacturing and supply chain environments. All products are manufactured under ISO 9001:2015 and ISO 14001:2015 certified quality control, ensuring a reliable, sustainable product that meets a variety of application needs.
