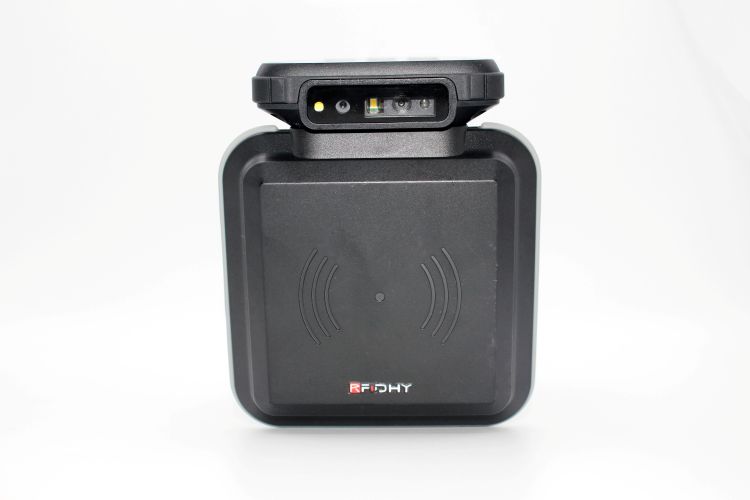

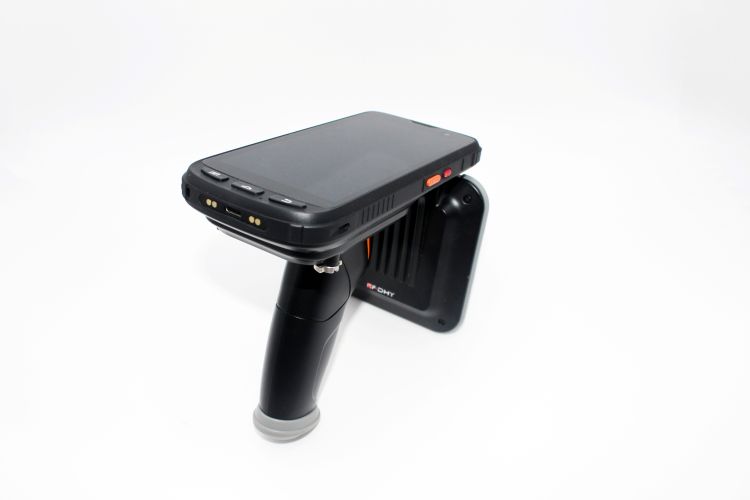

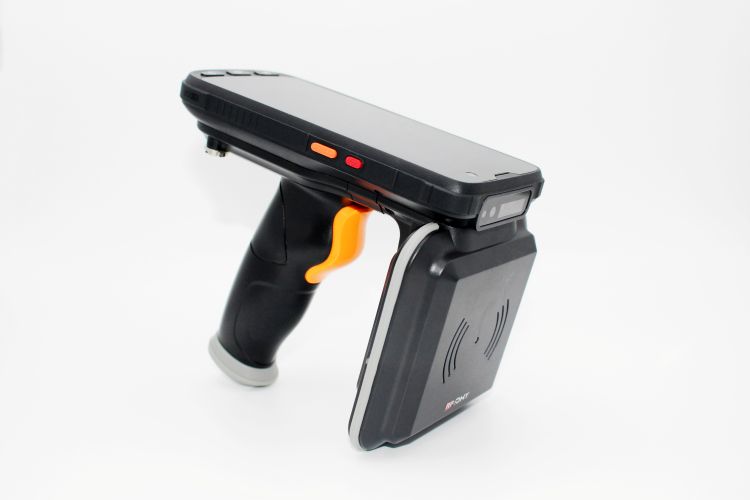

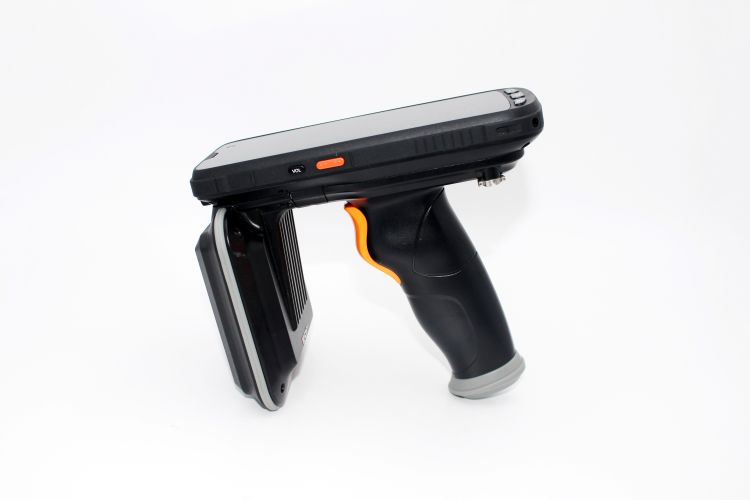

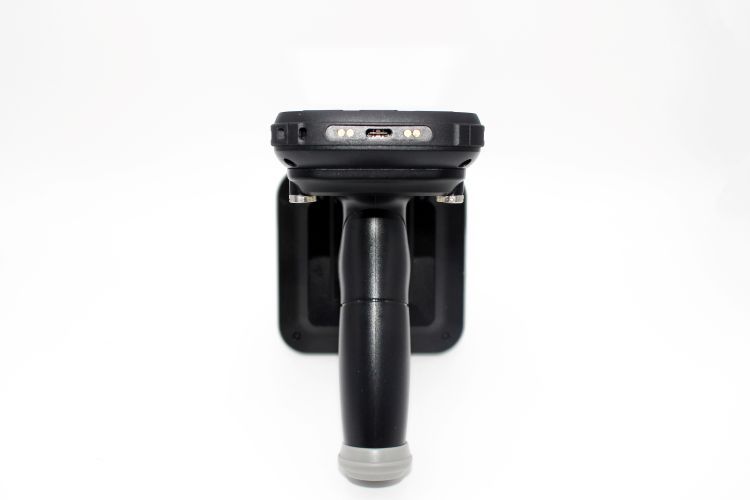

HY-R6100 Handheld UHF Reader

HY-R6100 Handheld UHF Reader

HY-R6100 Handheld UHF Reader Based on TSMC’s leading 12nm process technology. The performance is 3-8 generations ahead of competing products, with high-end functions and excellent performance experience. Running various applications at high speed. Octa-core 64-bit CPU. Clocked at 2.0GHz. Android10.0 operating system. Independent research and development. Of a new generation of circularly polarized antenna

• Easy to operate
• Multiple tags operation allowed
• Fast Wireless Connectivity
• Powerful Battery
• Highly Customizable

Why use HY-R6100 Handheld UHF Reader?

Over-the-horizon reading

Based on the R2000 high-performance module and equipped with a self-developed circularly polarized antenna. It has excellent RFID long-distance reading performance. Outdoor open environment reading distance can be up to 20 meters. More than 40% higher than the existing industry level.

Industry-leading RFID multi-tag reading

Support multi-tag reading, the multi-tag reading rate is 200Tag/s. And 2000 tags take about 10S to complete the whole disk.(tested by impinj H47, which may actually be affected by tags and the environment)

2000 Tags/10s

Strong Expansion

It can deeply and flexibly expand functional modules such as RFID, NFC, PSAM, and two-dimensional barcodes. Which can be easily done in one “department”.

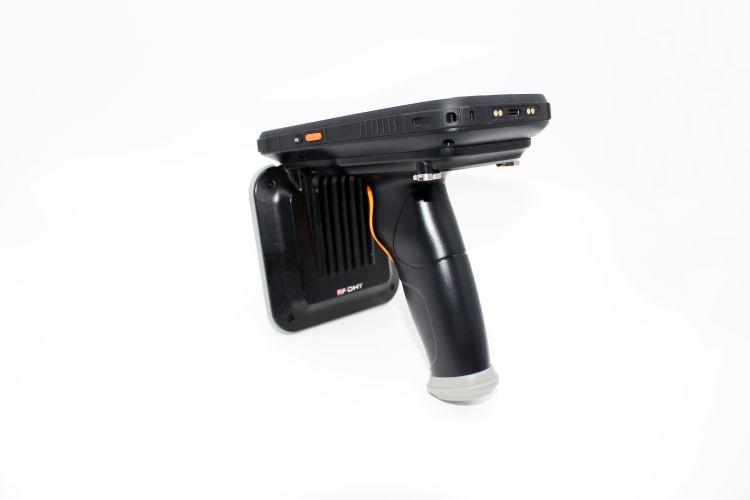

Comfortable Enough

Ergonomic and comfortable grip handle design. The shield adopts a special heat dissipation aluminum alloy back cover design. Which has a strong heat dissipation effect.

IP65 Grade Protection

It can resist 1.5 meters free fall and completely confine dust. It can effectively maintain the best equipment state. And make mobile information work handled with ease.

Processor:

High-speed octa-core 6 4-bit; 2.0GHz

System: Android 10.0

Store: 2GB RAM+16GBROM; 4GB RAM+64GBROM

Monitor: 5.5-inch IPS high-brightness display; capacitive touch screen

keyboard

2 scan buttons on the side

1 power button

1 volume button

4 custom physical buttons F1~F4 on the front

Navigation and positioning

GPS (AGPS), Beidou, GLONASS,

Error range ±5m

Expand: Support 256GB, Micro T card

Interface

Type-C with 10PIN function on the right

Extended POGO PIN

Indication sensor:

vibrator, charging indicator

Battery

3.8V, 9000mAh polymer lithium battery.

The battery can be disassembled and replaced by itself.

Convenient to extend the battery life of the device.

camera

Front (optional) 5 million pixels

Rear 1300W, with flash

Autofocus function

Weight

About 650 grams (including battery)

Expansion slot

2 Sim card slots, support dual card dual standby,

1 TF card slot, 2 PSAM card slots (optional)

Working Environment

Working temperature: -20℃~+50℃Relative humidity: -5%~95% (non-condensing)

Storage temperature: -20℃~+70℃Protection class: IP65
