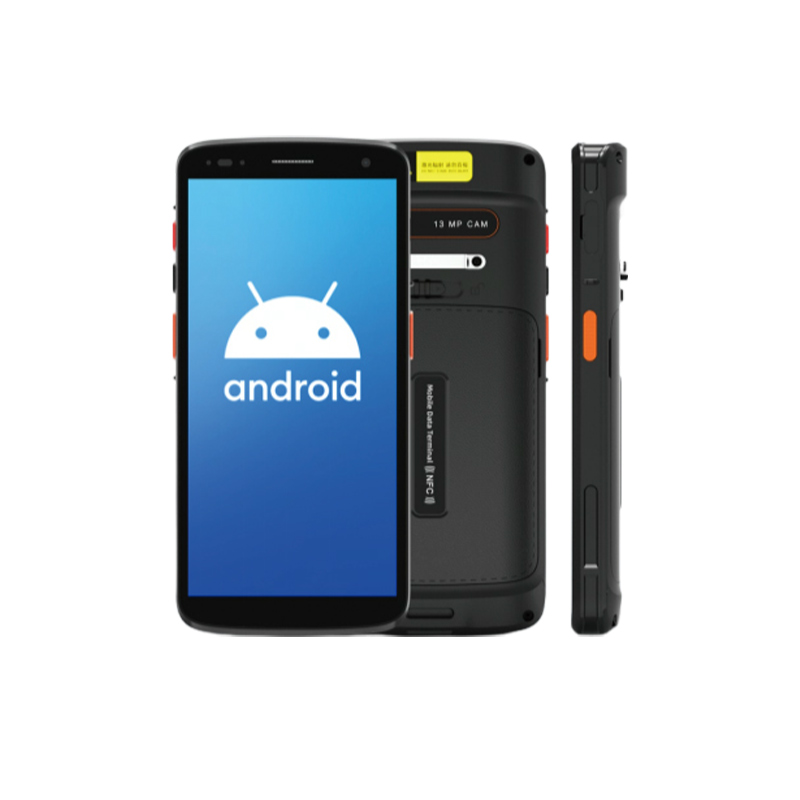

HY-R3300 NFC Smart Data Acquisition Terminal

Name: HY-R3300 NFC Smart Data Acquisition Terminal
Brand: RFIDTagHY
SKU: HY-R3300
Price: 290 USD
Availability: InStock

In Stock

HY-R3300 NFC Smart Data Acquisition Terminal combines high-speed 4G, Wi-Fi, and Bluetooth 5.0 connectivity with professional barcode and NFC reading. Powered by an octa-core 2.3GHz processor and Android 15, it offers fast data collection, IP65 protection, and long battery life...

$290/pc

MOQ: 1 pcs · Volume discounts available on request

$290.00

In Stock (100 available)

Quantity

Request Quote

or pay with

Please fill in all required shipping fields above to proceed with PayPal.

Secure checkout via PayPal

HY-R3300RFID ProductNFCHF

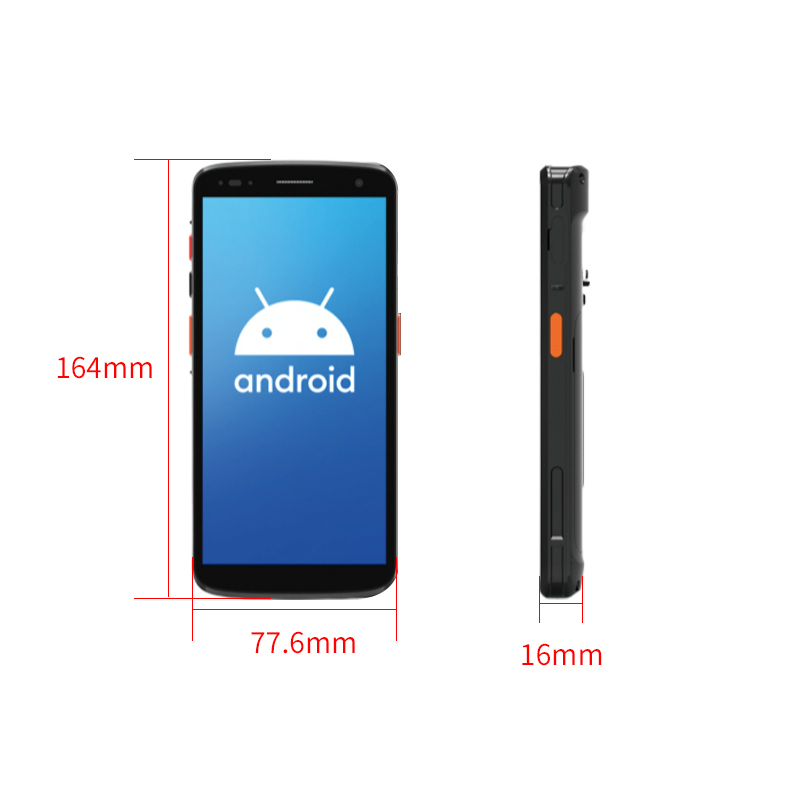

Overall Dimensions	164 × 77.6 × 16 ± 2 mm
Overall Weight	274g
Display	6-inch IPS HD Display
Resolution	HD: 720×1440 (Standard) FHD: 1080×2160 (Optional)
Expansion Card Slot	1 SIM card slot, 1 TF card slot
Communication Interface	Type-C data port
Indicator Light	Charging indicator light
Keyboard	Power button/Scan button/Volume buttons
Camera	Front 5MP (standard), Rear 13MP (standard) with flash and autofocus GPS + BeiDou dual navigation system
GPS	Accuracy range ±10 m
CPU	Octa-core 64-bit processor, 2.3GHz clock speed
Memory Capacity	RAM: 3GB ROM: 32GB (Standard), RAM: 4GB ROM: 64GB (Optional)
Expandable Memory	Supports 256GB Micro SD card
Operating System	Android 15
Data Communication	4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1,2, 3,4,7, 17,20 3G:WCDMA( 850/1900/2100MHz); 2G:GSM/GPRS/ Edge (850/900/1800/1900MHz)
WIFI	Dual-band 2.4GHz/5GHz
Bluetooth	Compliant with Bluetooth 5.0
Operating Temperature	-20℃ ~ 50℃
Storage Temperature	-20℃ ~70℃
Relative Humidity	5% ~95% non-condensing
Protection Rating	Host IP65
Battery Capacity	5050mAh Lithium Polymer Battery
Standby Time	Up to 360 hours standby time with wireless communication disabled
Charging Time	Less than 4 hours
Operating Time	Over 12 hours (per full charge)
1D Scanning Engine	Professional 1D Scanner/Other
Supported 1D Barcode Types	Supports mainstream common 1D barcodes
2D Scanning Engine	Professional 2D Scanner/Other
Supports 2D barcode types	PDF417, Micro PDF417,Composite, RSS, TLC-39,Data matrix, QR code, Micro QR code, Aztec, Maxi Code, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal,Japan Postal, Dutch Postal Wait.
Operating Frequency	13.56MHz
Protocol Standard	ISO 14443A/B, ISO 15693, NFC-IP 1, NFC-IP2, etc.
Tag Standard	M1 card (S50, S70), CPU card, NFC tag, etc.
Read/Write Range	3cm‒5cm
Standard configuration	1 battery, 1 power adapter, 1 Type-C data cable
