HY-R1900-U is a high-performance UHF-band cooperative electronic tag reader, which is designed with independent intellectual property rights and combined with a proprietary high-efficiency electronic tag collision processing algorithm. It can realize fast reading and writing o...
$55/pc
MOQ: 1 pcs · Volume discounts available on request
| Read-write card type | ISO18000-6C（EPC Gen2） |
|---|---|
| Working frequency | 902~928MHz,860~868MHz (software adjustable) |
| Output rating | 0 – 17dBm |
| Communication interface | USB (USB HID & Virtual Keyboard)/USB VSP (Virtual Serial Port) |
| Antenna specification | 1dBi ceramic antenna |
| Card reading speed | 200 times/1s |
| Operating voltage | USB, 200mA |
| Reading distance | 0-30cm |
| Card writing distance | 0-10cm |

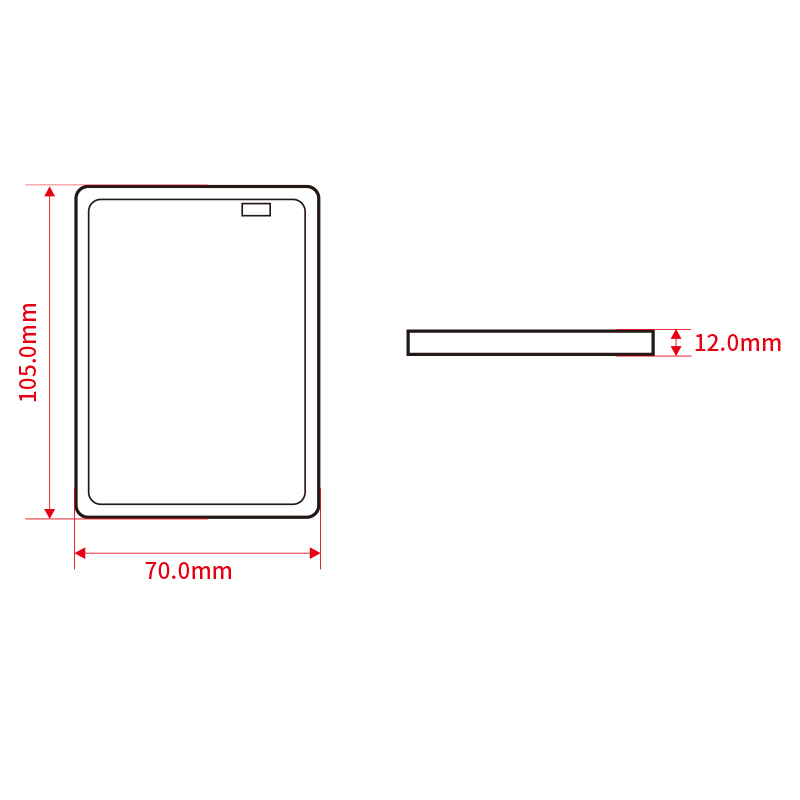

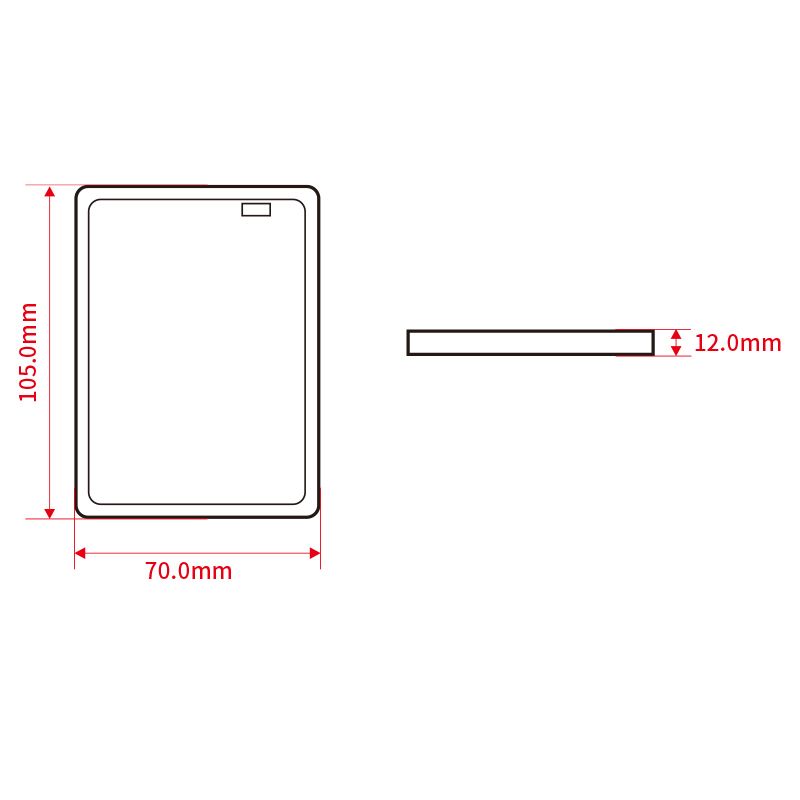

| Measure | 105.0×70.0mm |
| Thickness | 12.0mm |
| Material | ABS |
| Colour | white |
| Packing size | 15.0×10.0x4cm |
| Weight | 50.0g |
| Packing weight | 0.3kg |
| Waterproof grade | IP65 |
| Storage temperature | -40°C~+85°C |
| Working temperature | -20°C~+60°C |
| Working humidity | 5%~95% RH,Non-condensing |

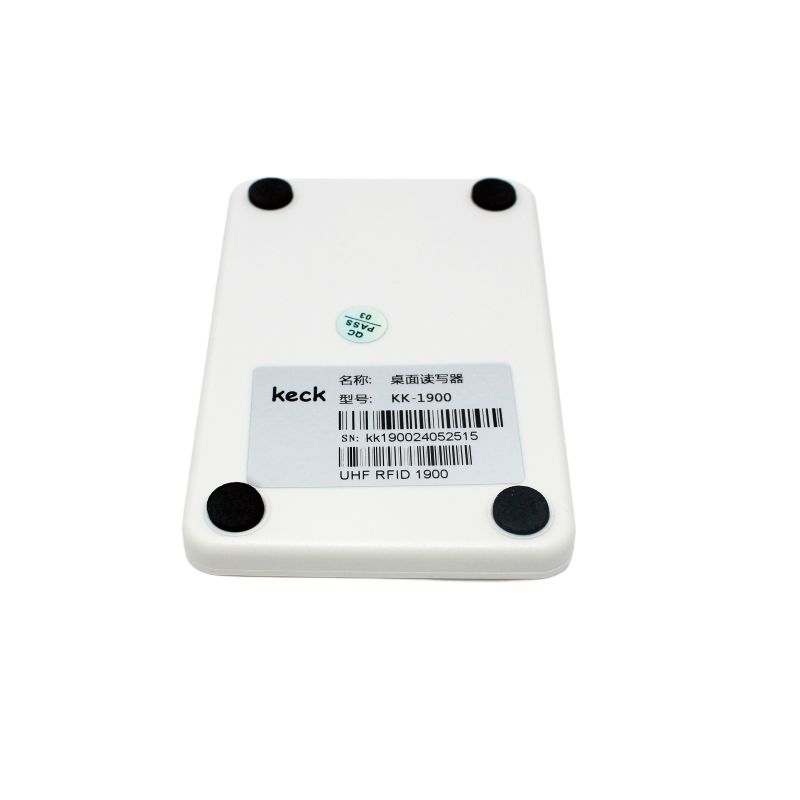

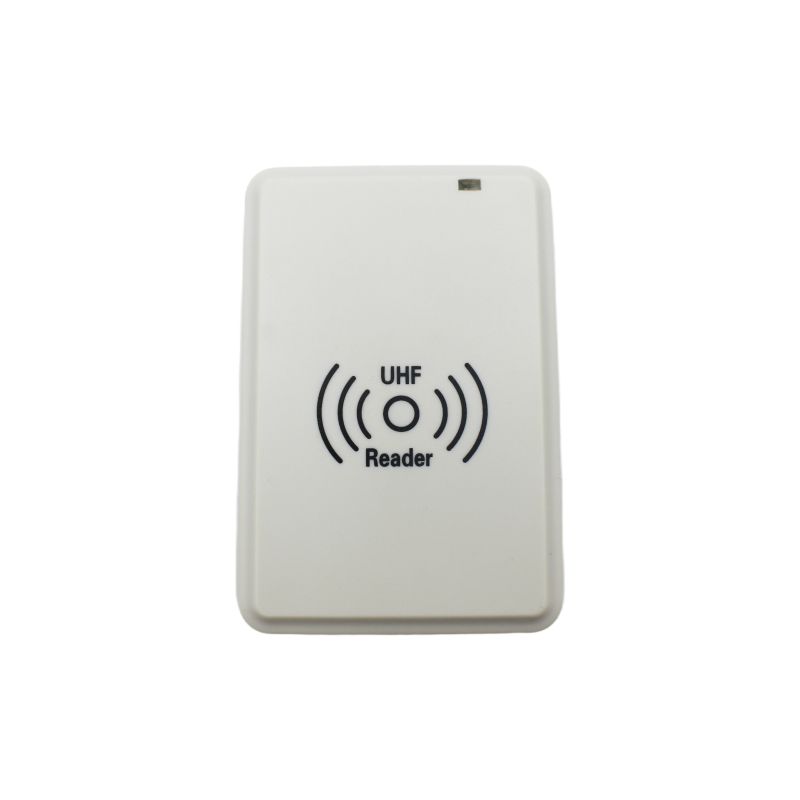

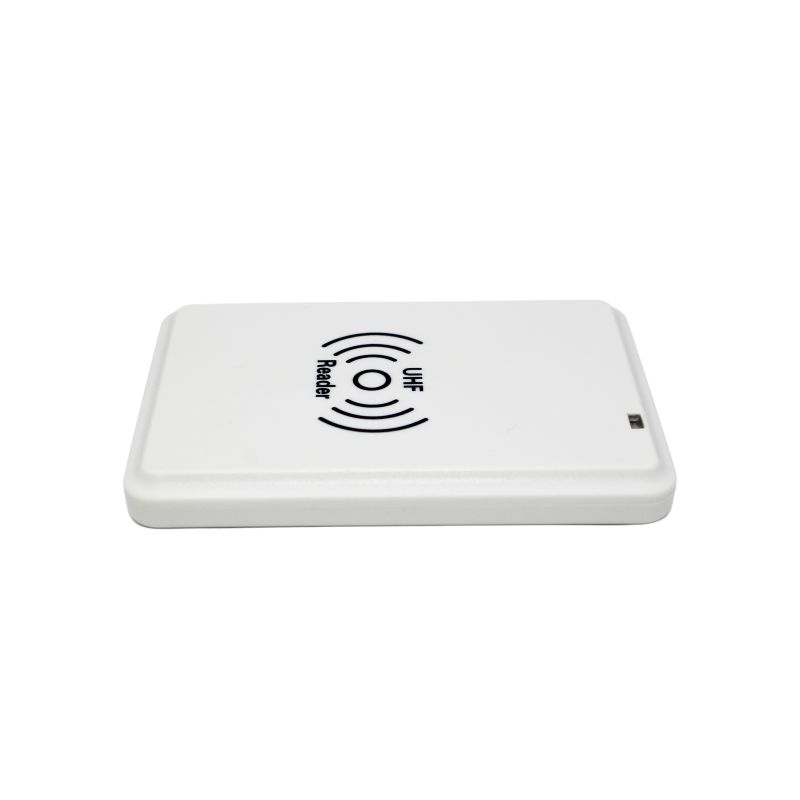

HY-R1900-U is a high-performance UHF-band cooperative electronic tag reader, which is designed with independent intellectual property rights and combined with a proprietary high-efficiency electronic tag collision processing algorithm. It can realize fast reading and writing of electronic tags while maintaining a high reading rate.
It can be widely used in logistics, personal identification, intelligent parking lot, access control system, anti-counterfeiting system, production process control and other radio frequency
identification (RFID) systems.
