The shape is small and round, comfortable to the touch, and easy to carry. Support electronic tags in EMID, FDX-B (ISO1784/85) and other formats. The 1.44" TFT display clearly displays the label number and device status. Built-in storage function, up to 500 label information c...
$55/pc
MOQ: 1 pcs · Volume discounts available on request
| Operating frequency | 134.2 Khz/125 Khz |
|---|---|
| Label Format | EMID,FDX-B(ISO11784/85) |
| Read and write distance | 2~12mm glass tube label>8cm,30mm animal ear tag> 20cm (related to label performance) |
| Standards | ISO11784/85 |
| Read time | <100ms |
| Wireless distance | 0-80m (Accessibility) |
| Bluetooth distance | 0-20m (Accessibility) |
| Signal indication | 1.44-inch TFT LCD screen,buzzer |
| Electricity | 3.7V (800mAh lithium battery) |
| Storage capacity | 500 messages |
| Communication interfaces | USB2.0 |
| Language | English (can be customized according to customer requirements) |
| Operating temperature | -10℃~50℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 5%-95% non-condensing |

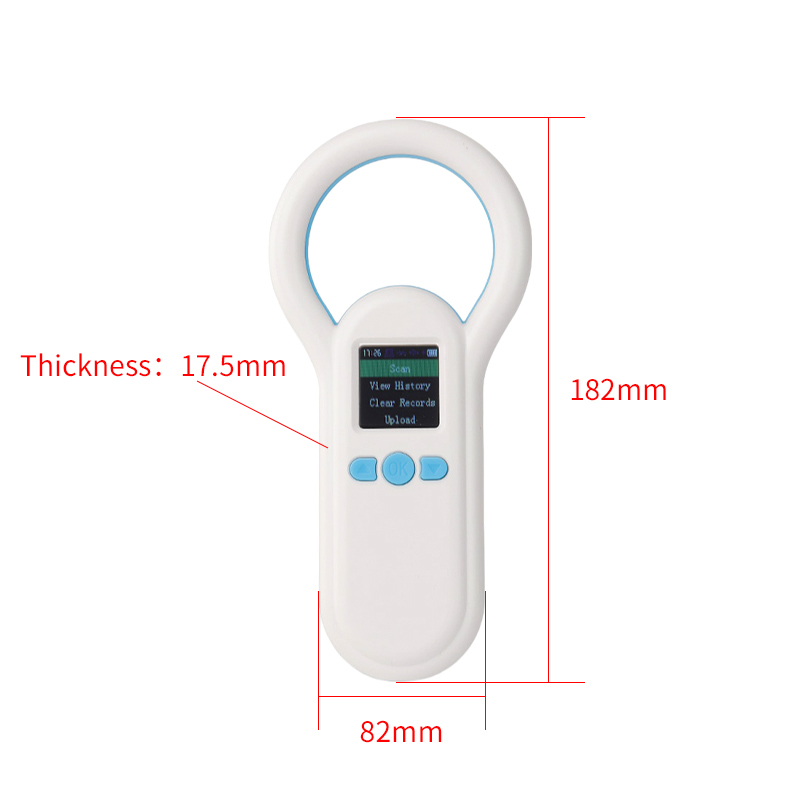

| Product dimensions | 182mm×82mm×17.5mm |
| Net weight | 134.1g |

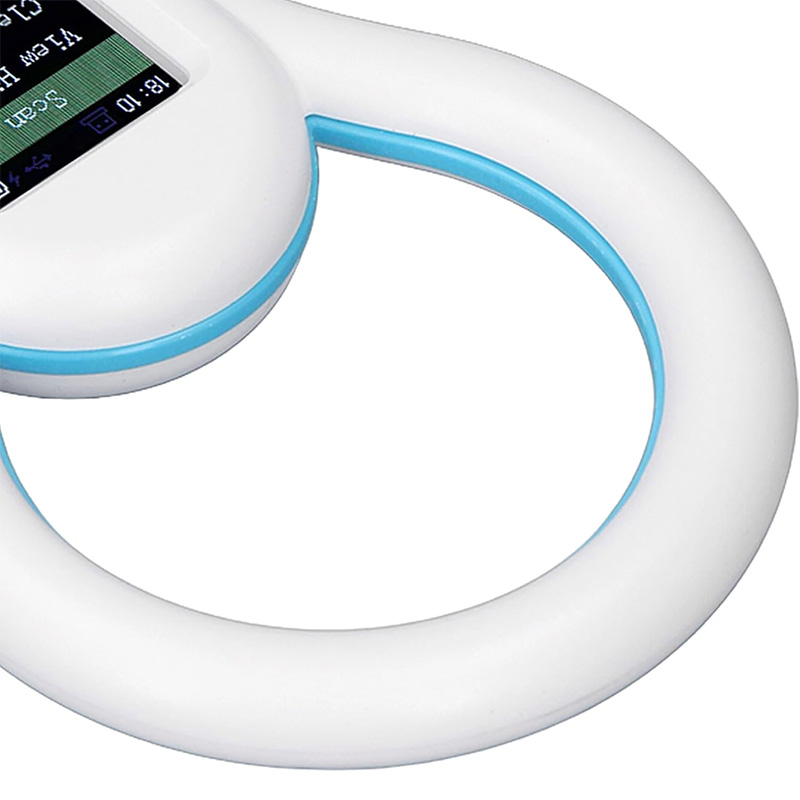

The shape is small and round, comfortable to the touch, and easy to carry.
Support electronic tags in EMID, FDX-B (ISO1784/85) and other formats.

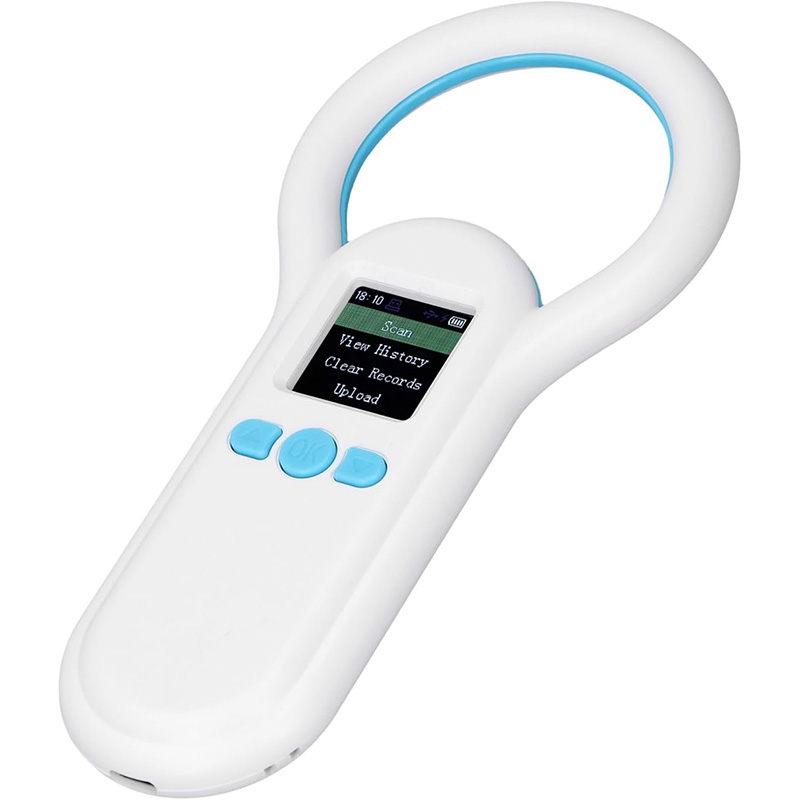

The 1.44″ TFT display clearly displays the label number and device status.
Built-in storage function, up to 500 label information can be stored.

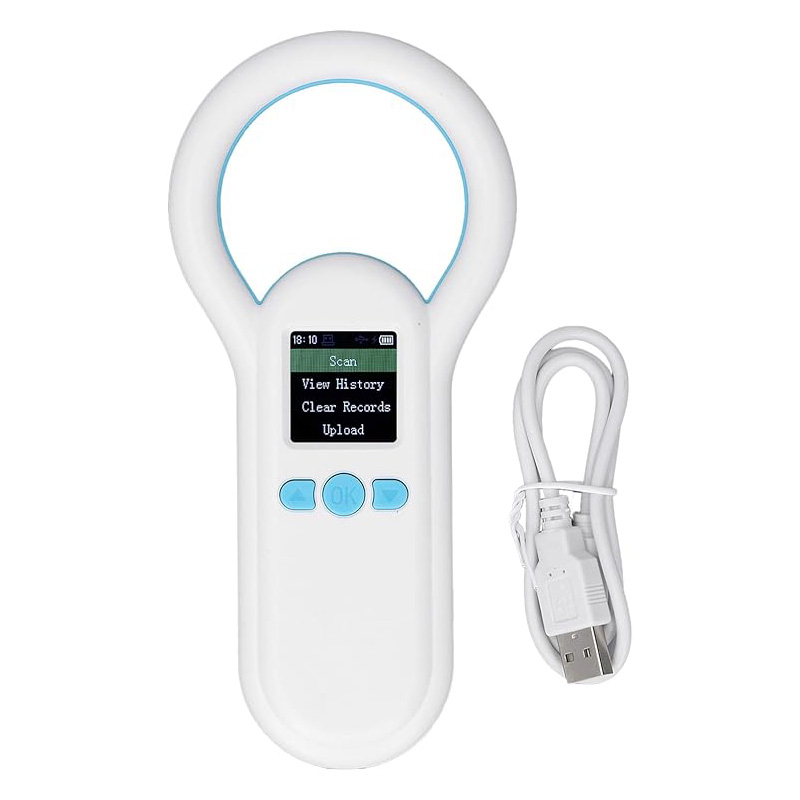

It can be uploaded to a computer via a USB cable.
