HF ICODE SLIX Label

HF ICODE SLIX Label

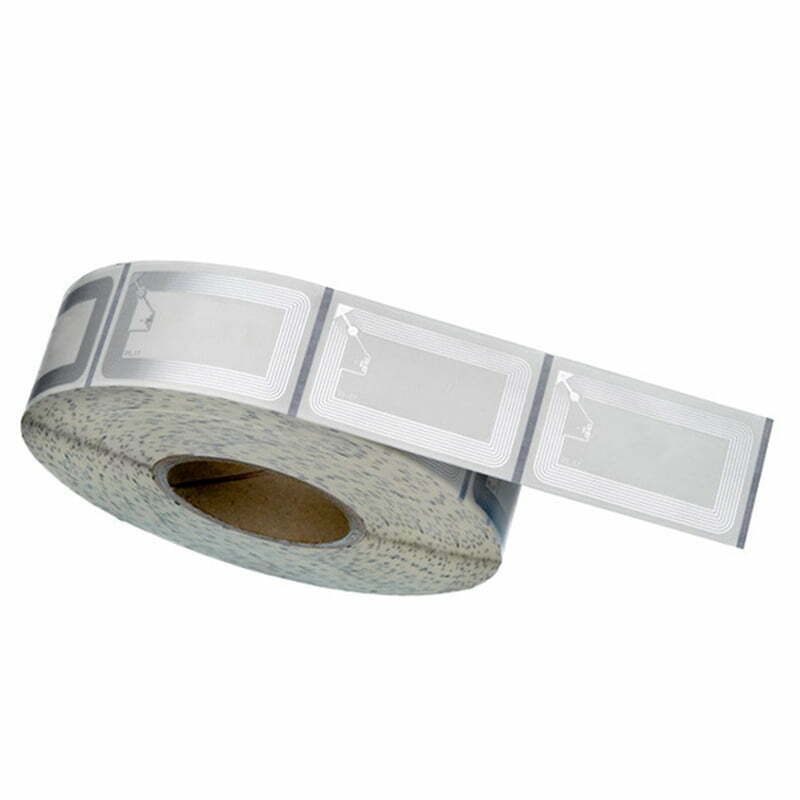

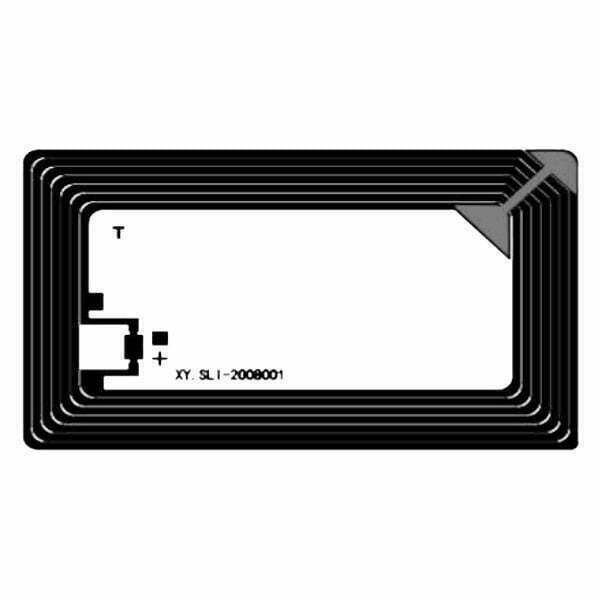

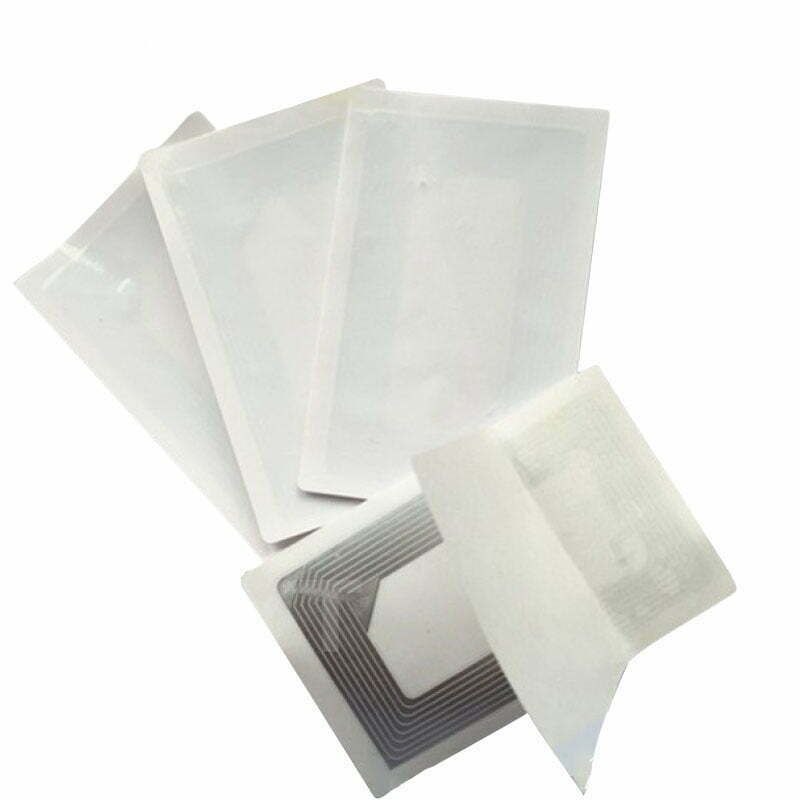

RFIDHY Inlays & Labels are small, thin self-adhesive tags that are easily hidden behind a poster or display, or inside a product housing or package; or they may be imprinted with high-visibility graphics, attracting the attention of people with smartphones or other standard RFID readers.

• Silk-screen printing/Offset printing/Digital printing
• 3M adhesive layer
• Crafts can be customized in accordance with customer requirements for different profucts

ICODE SLIX IC is a chip for intelligent label applications.

Product authentication in different industries. Not only pharmaceutical, medical devices and alcohol. But also production management in different areas of the industry.
The ICODE system offers the possibility of operating labels simultaneously in the field of the reader antenna (anti-collision). More ever, it is designed for long range applications.

1.1 Contactless energy and data transfer

Whenever connected to a very simple and easy-to-produce antenna. Technicians can operate the ICODE SLIX IC up to a distance of 1.5 m (gate width). In addition, no need battery. On the other hand, when the smart label is in the field of an interrogator antenna. The high speed RF communication interface enables transmitted data up to 53 Kbit/s.

1.2 Anti-collision

An intelligent anti-collision function enables several tags to operate in the field simultaneously. On one hand, the anti-collision algorithm selects each tag individually. On the other hand, it ensures that the transaction execution with a selected tag performed correctly. No data corruption resulting from other tags in the field.
1.3 Security and privacy aspects
• Unique Identifier (UID):
You cannot alter the UID. Hence, guarantees the uniqueness of each label.
• Password protected EAS and AFI functionality:
You may set the 32-bit EAS/AFI password. And you may change the EAS status and the AFI value. Only when you transmitted to the label within the mentioned commands and correct EAS/AFI password.
